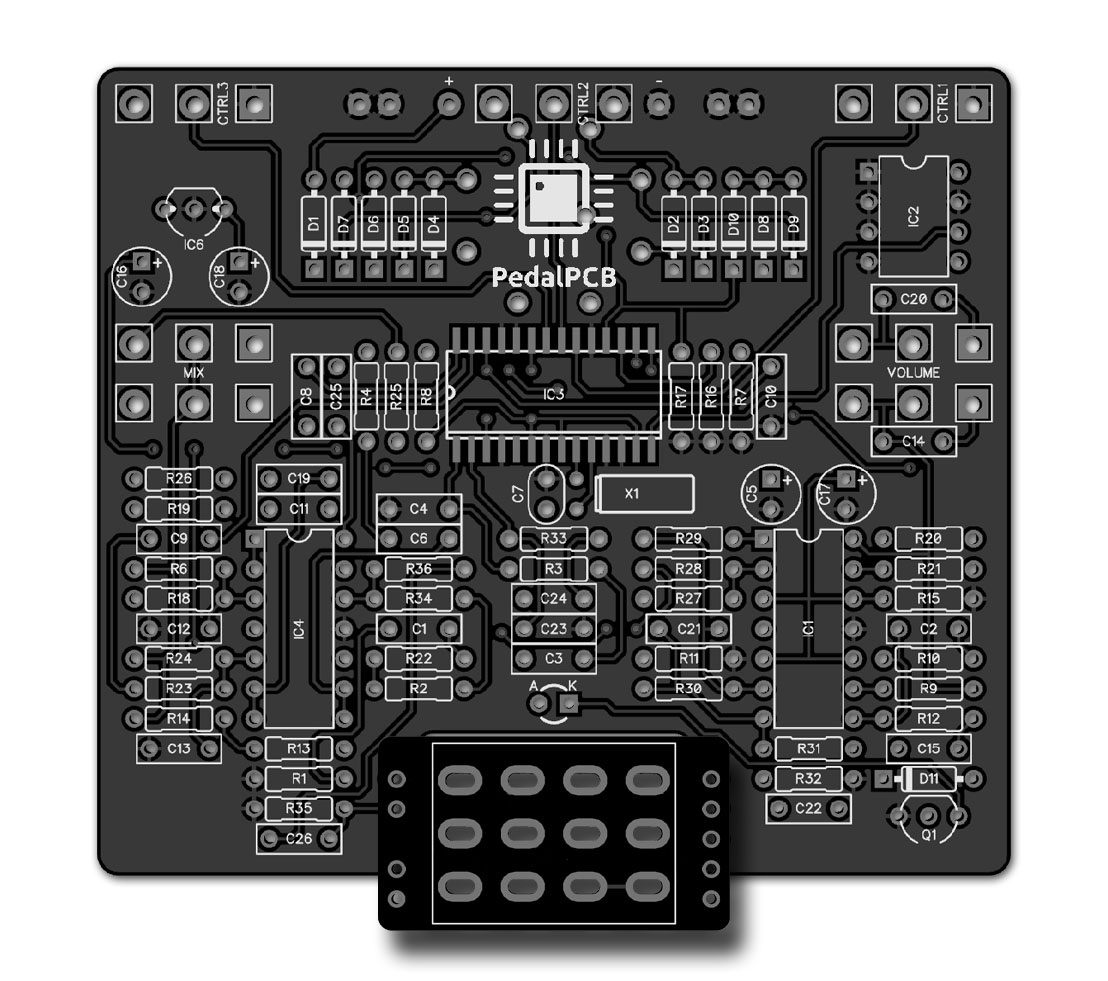

Binaura Stereo FV-1 Platform

NOTE: PCB only, no EEPROM or algorithms are included.

The PedalPCB Binaura is a stereo FV-1 based digital multi-effects pedal platform.

Three digital control parameters, analog dry signal path with wet/dry mix, and adjustable output volume capable of up to 6db boost.

Features

• True stereo and Mono in / Stereo out operation
• Stereo wet/dry mix control
• Stereo volume control
• 8-position rotary switch for program selection (rotary switch not included)

Controls

• Control 1 – Digital parameter control
• Control 2 – Digital parameter control
• Control 3 – Digital parameter control
• Mix – Adjusts the Wet/Dry mix
• Mode – Selects the active algorithm
• Volume – Controls the overall output volume

Specifications

• Designed for a 1590BB enclosure with top-mounted jacks

Downloads

Build docs coming soon…
