Basic Relay DPDT Switch (Latching)

Overview

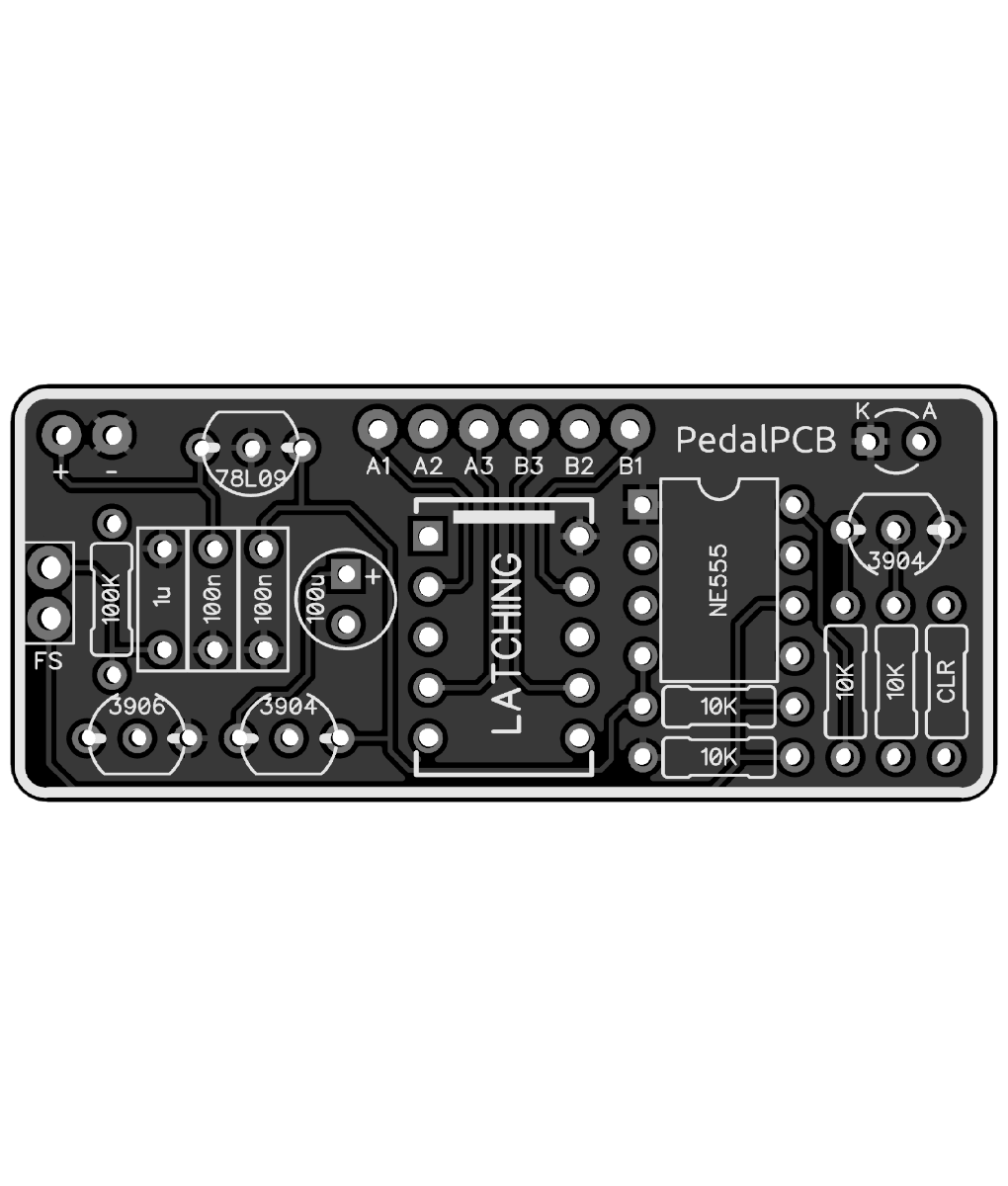

The PedalPCB Basic Relay Bypass module uses common components for a simple and economical solution to relay driven DPDT switching. A latching relay is utilized to minimize power consumption.

Footswitch, relay, and other components are not included

Features

• Can be used for most DPDT switching functions
• Uses latching relay to minimize power consumption
• No microcontroller is required

Documentation

Build documentation coming soon
