Basic Relay DPDT Switch

Overview

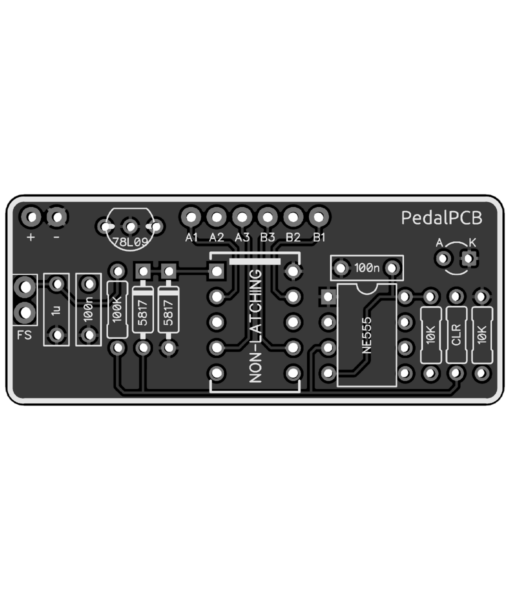

The PedalPCB Basic Relay DPDT module uses common components for a simple and economical relay driven solution to DPDT switching.

Footswitch, relay, and other components are not included

Features

• Can be used for most DPDT switching functions
• Uses inexpensive 4.5VDC non-latching relay
• No microcontroller is required

Documentation

Build documentation coming soon…
