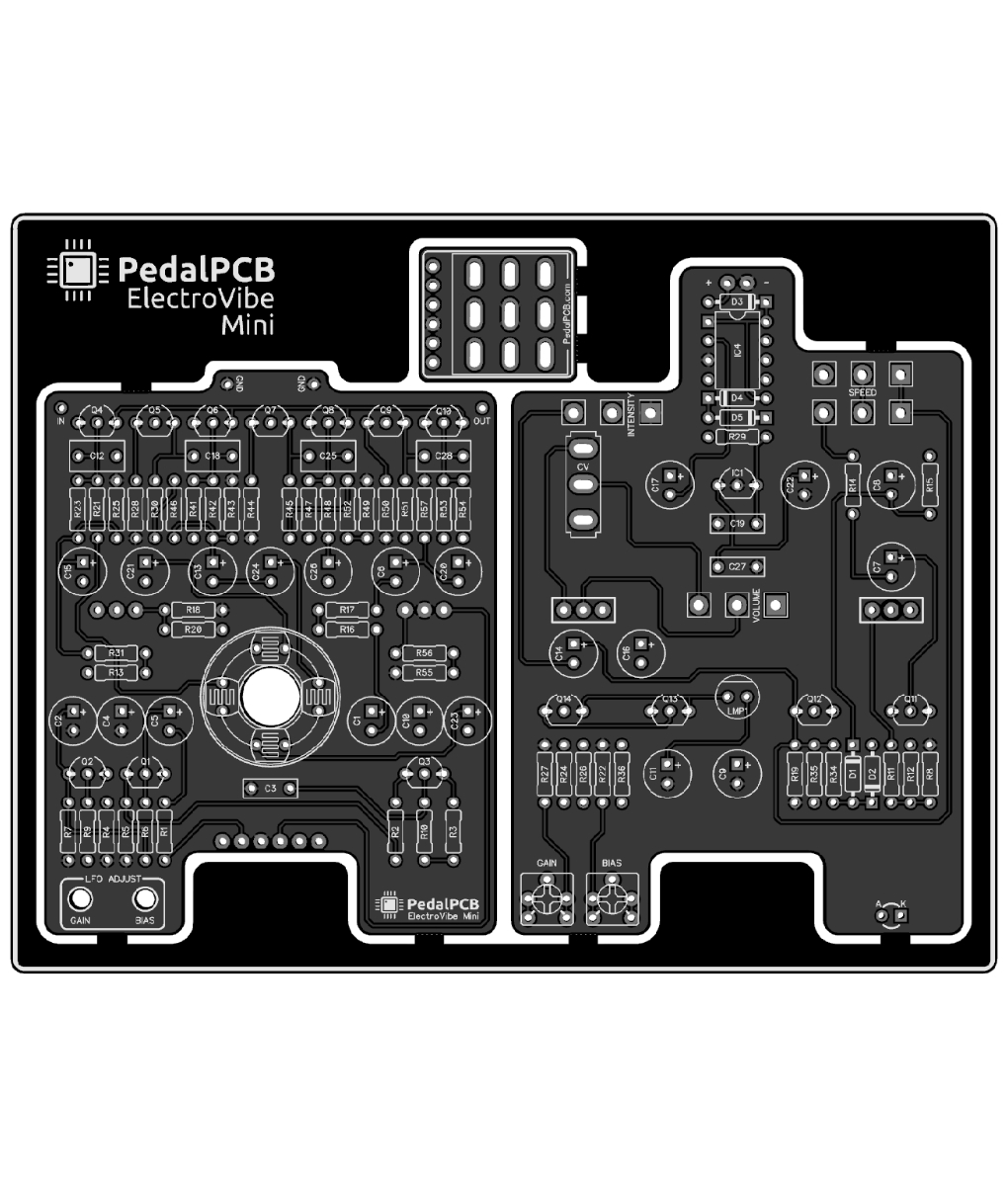

This project utilizes multiple stacked circuit boards.
Special considerations must be made regarding the height of components, particularly electrolytic and film capacitors.
See project build documentation for more information.
- Designed for a 125B enclosure with top-mounted jacks
benspinks1 (verified owner) –
Wonderful sounding vibe! To fit this into a 125b is some achievement! It’s a really great design and a fairly simple build.
mmisulia (verified owner) –
Fantastic sounding vibe – depending on your photocell/LDR and trimmer set up, you can get a very deeply modulated signal. Some of the shorter caps and such recommended in the build guide were not available on Tayda, but I was able to source everything I needed from Mouser and SmallBear. SmallBear had lots of photocell options that no one else had, I ended up with a lamp from Mouser and the 7530’s from Small Bear, highly recommended. Surprised by how much I love the pure vibrato mode as well, very tasteful and useable. Awesome pedal.
