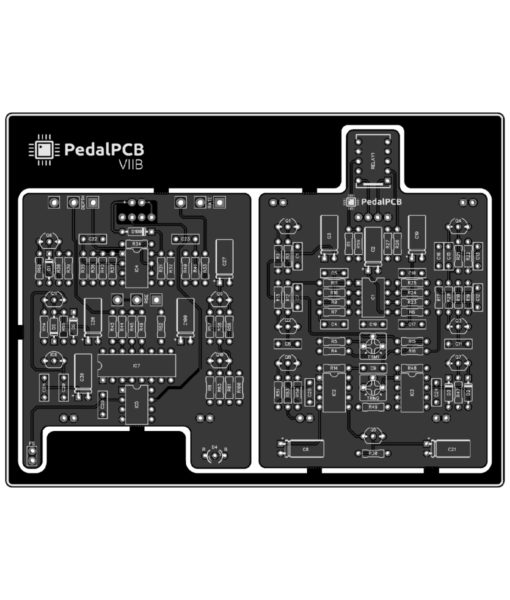

This project utilizes multiple stacked circuit boards.
Special considerations must be made regarding the height of components, particularly electrolytic and film capacitors.
See project build documentation for more information.
Controls
- Rate
- Depth
- Rise Time
Intelligent Latching/Momentary Switching
The PedalPCB VIIB features integrated Intelligent Switching for on-the-fly Latching / Momentary operation. Pressing the footswitch will toggle between Active/Bypass. Holding down the footswitch will momentarily Activate (or Bypass) the effect until the footswitch is released. No Latching/Unlatching mode switch required.
Bypass Modes
- True-Bypass – In True-Bypass mode the effect circuit is completely removed from the signal path when the effect is bypassed. In this mode the LED indicator glows red when the pedal is active, and turns off when the pedal is bypassed.
- Classic – In Classic mode the effect circuit remains in the signal path when the effect is bypassed. The LFO signal is turned off to stop the vibrato effect. In this mode the LED indicator glows red when the pedal is active, and blue when the pedal is bypassed.
Specifications
- Designed for a 125B enclosure with top-mounted jacks
Documentation
Build docs coming soon…
The company, product and service names used in this web site are for identification purposes only. All trademarks and registered trademarks are the property of their respective owners. This product is not manufactured or distributed by Boss, maker of the Boss VB-2 Vibrato pedal.
PedalPCB is not affiliated with Boss or Roland Corporation.
| Weight | 1.75 oz |
|---|---|
| Dimensions | 2.35 × 2.825 × 0.5 in |
1 review for VIIB Vibrato
Only logged in customers who have purchased this product may leave a review.
Related products
jkranov (verified owner) –
I said it in the forum already but I actually prefer this to the behringer which is supposed to be very accurate to the vb2 sound. I can’t hear a difference and the relay switching is a huge improvement.
