Intelligent DPDT Relay Module

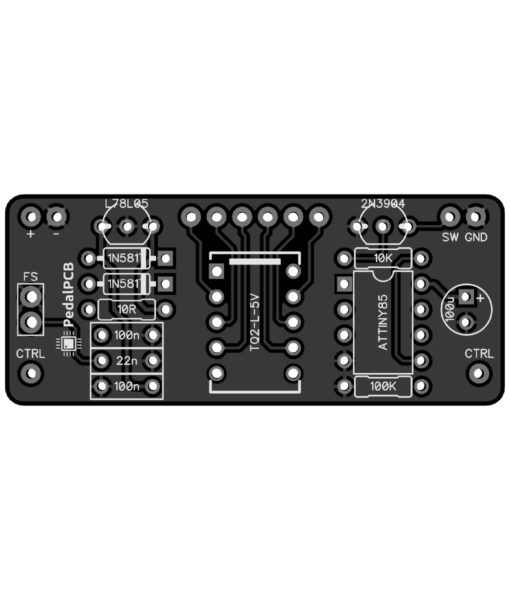

The PedalPCB Intelligent DPDT Relay Module brings the automatic latching/momentary switching of the Intelligent Relay Bypass Module to a versatile DPDT relay switch that can be used in a variety of applications. (Gain stage switching, delay feedback, reverb time, etc)

For standard effects true-bypass switching see the Intelligent Relay Bypass Module.

Includes

• Relay Bypass PCB
• Pre-programmed microcontroller

Footswitch, relay, and other components are not included

Features

• Uses latching relay (not included) for lower power consumption

Intelligent Latching / Momentary Switching

• Tap footswitch to toggle relay OPEN / CLOSED(standard operation)
• Hold down the footswitch while the relay is OPEN to momentarily CLOSE relay until the footswitch is released
• Hold down the footswitch while the pedal is CLOSED to momentarily OPEN relay until the footswitch is released

Documentation

Build documentation coming soon…
