Basic Relay Bypass (Latching)

Overview

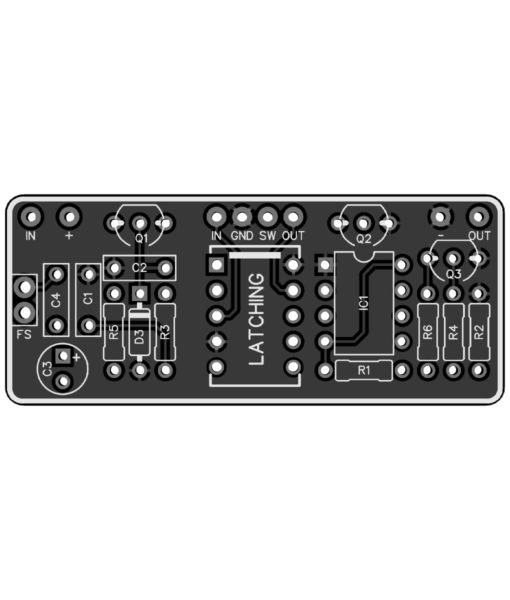

The PedalPCB Basic Relay Bypass module uses common components for a simple and economical solution to relay bypass switching. A latching relay is utilized to minimize power consumption.

Footswitch, relay, and other components are not included

Features

• Uses latching relay to minimize power consumption
• No microcontroller is required
• Grounds PCB input in bypass to reduce noise
• I/O pinout directly interfaces with most PedalPCB projects

Documentation

Download Build Documentation
