Basic Relay Bypass

Overview

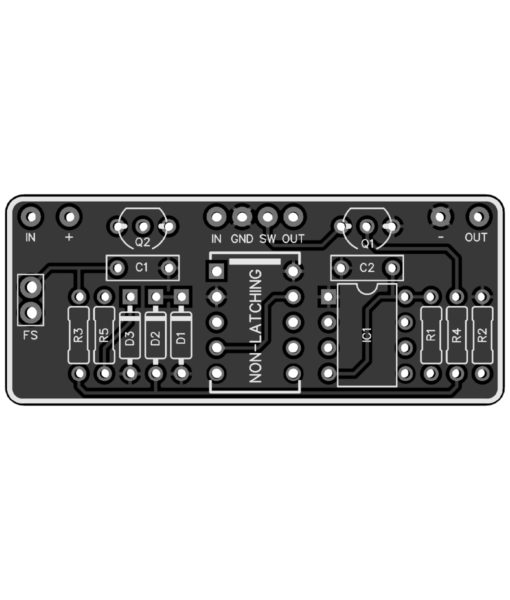

The PedalPCB Basic Relay Bypass module uses common components for a simple and economical solution to relay bypass switching.

Footswitch, relay, and other components are not included

Features

• Uses inexpensive non-latching relay
• No microcontroller is required
• Grounds PCB input in bypass to reduce noise
• I/O pinout directly interfaces with most PedalPCB projects

Documentation

Download Build Documentation
