6-Band EQ (Potentiometer Version)

Name: 6-Band EQ (Potentiometer Version) - PedalPCB.com
SKU: PCB369
Price: 12.00 USD
Availability: InStock
Rating: 5.00 (5 reviews)

Rated 5.00 out of 5 based on 5 customer ratings

$12.00

6-Band EQ

In stock

SKU: PCB369 Category: EQ / Filter Tags: 125B, 6-Knob (Type 1)

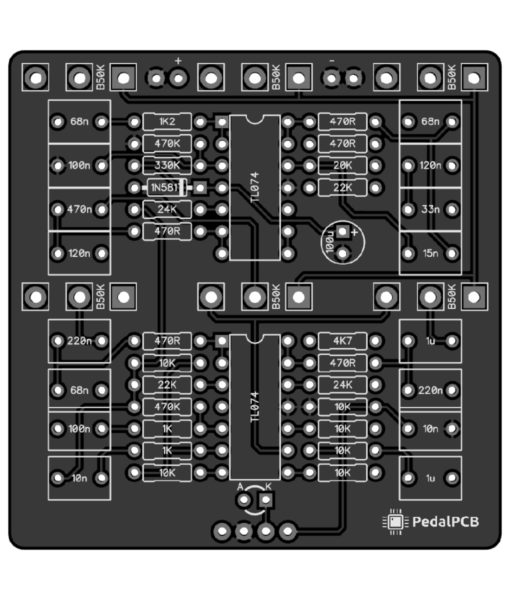

Standard potentiometer version of the 6-Band EQ project.

Controls

100Hz
200Hz
400Hz
800Hz
1.6kHz
3.2kHz

Specifications

Designed for a 125B enclosure with top-mounted jacks

Documentation

Download Build Documentation

Tayda Electronics Drill Template

Weight	0.45 oz
Dimensions	2.25 × 2.275 × 0.5 in
